Dana

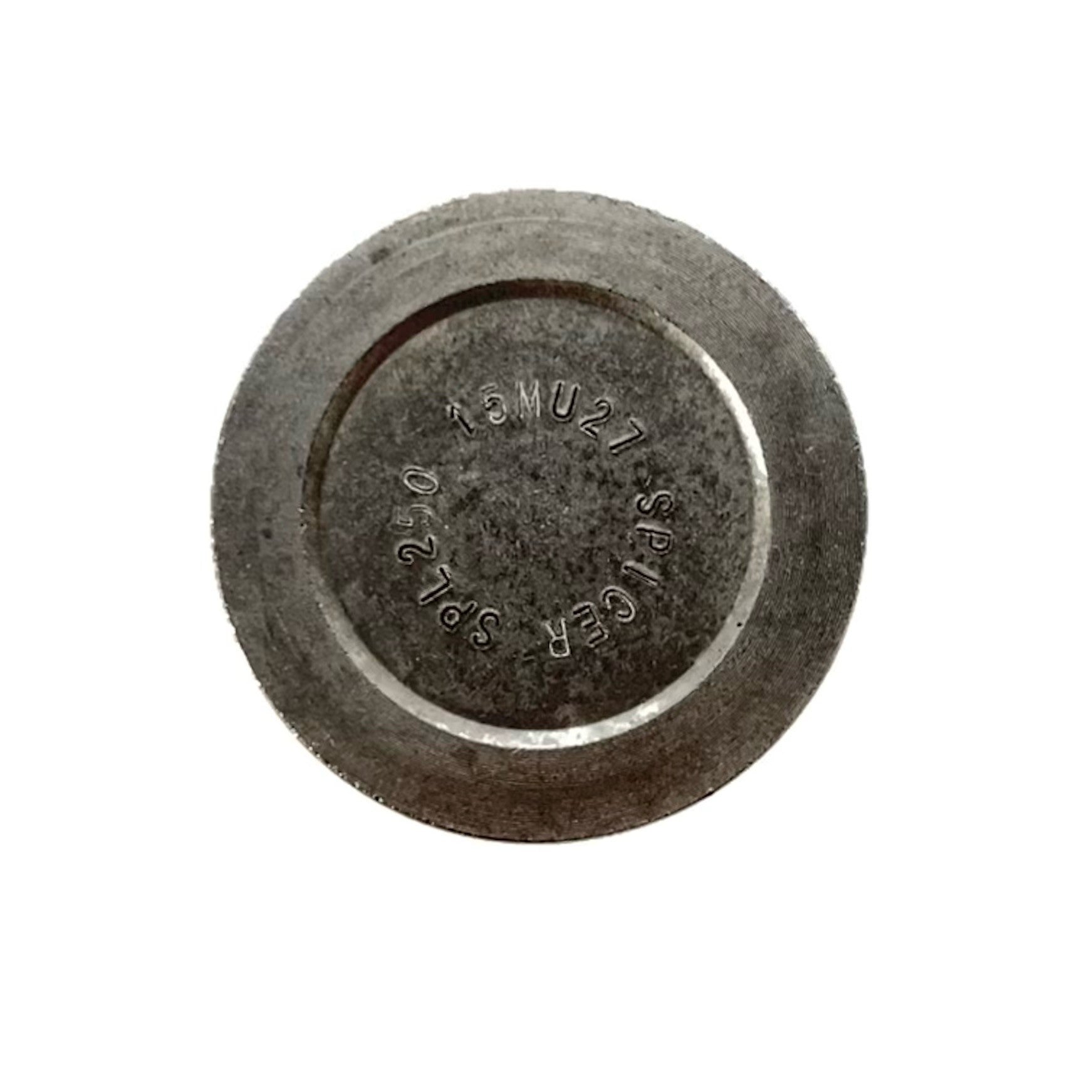

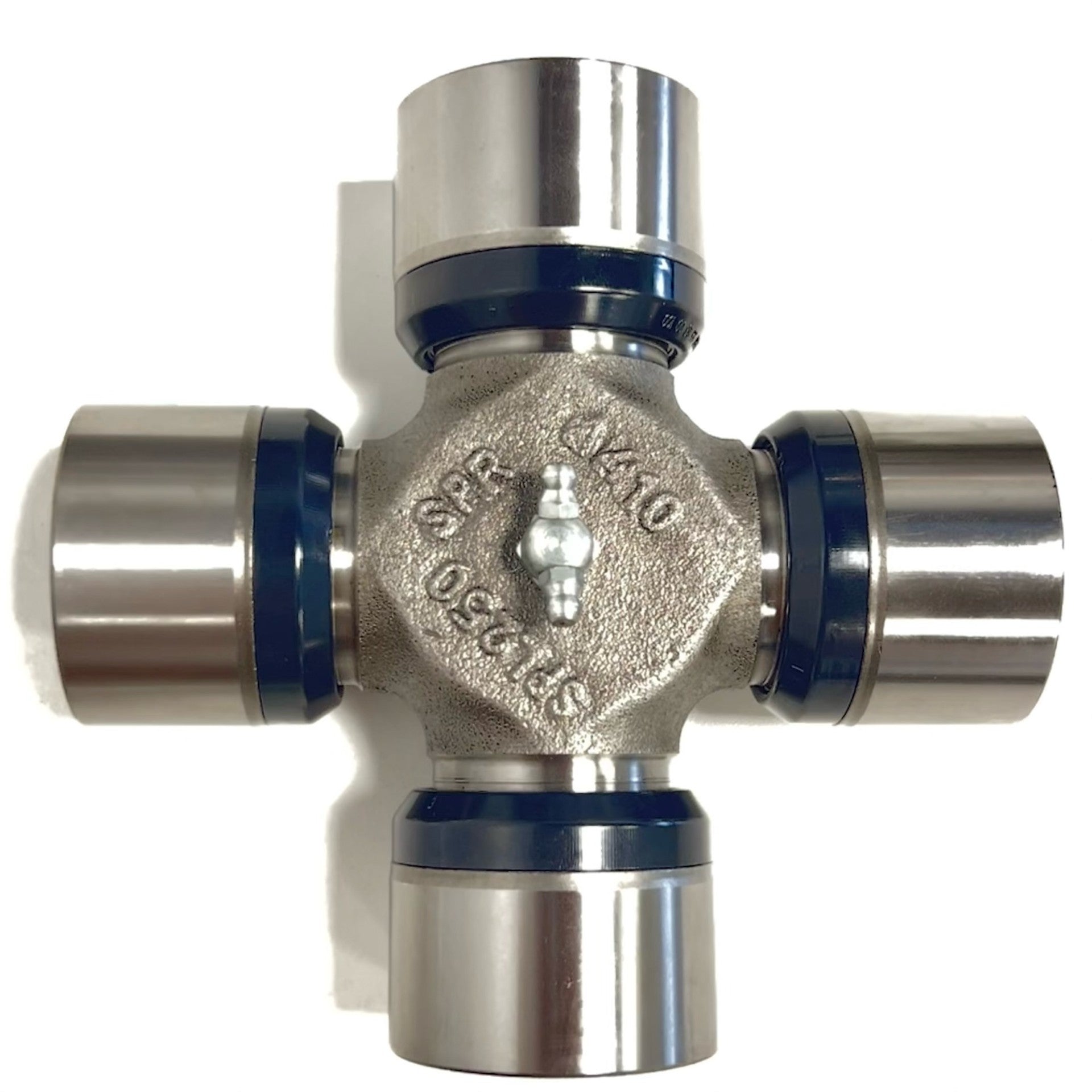

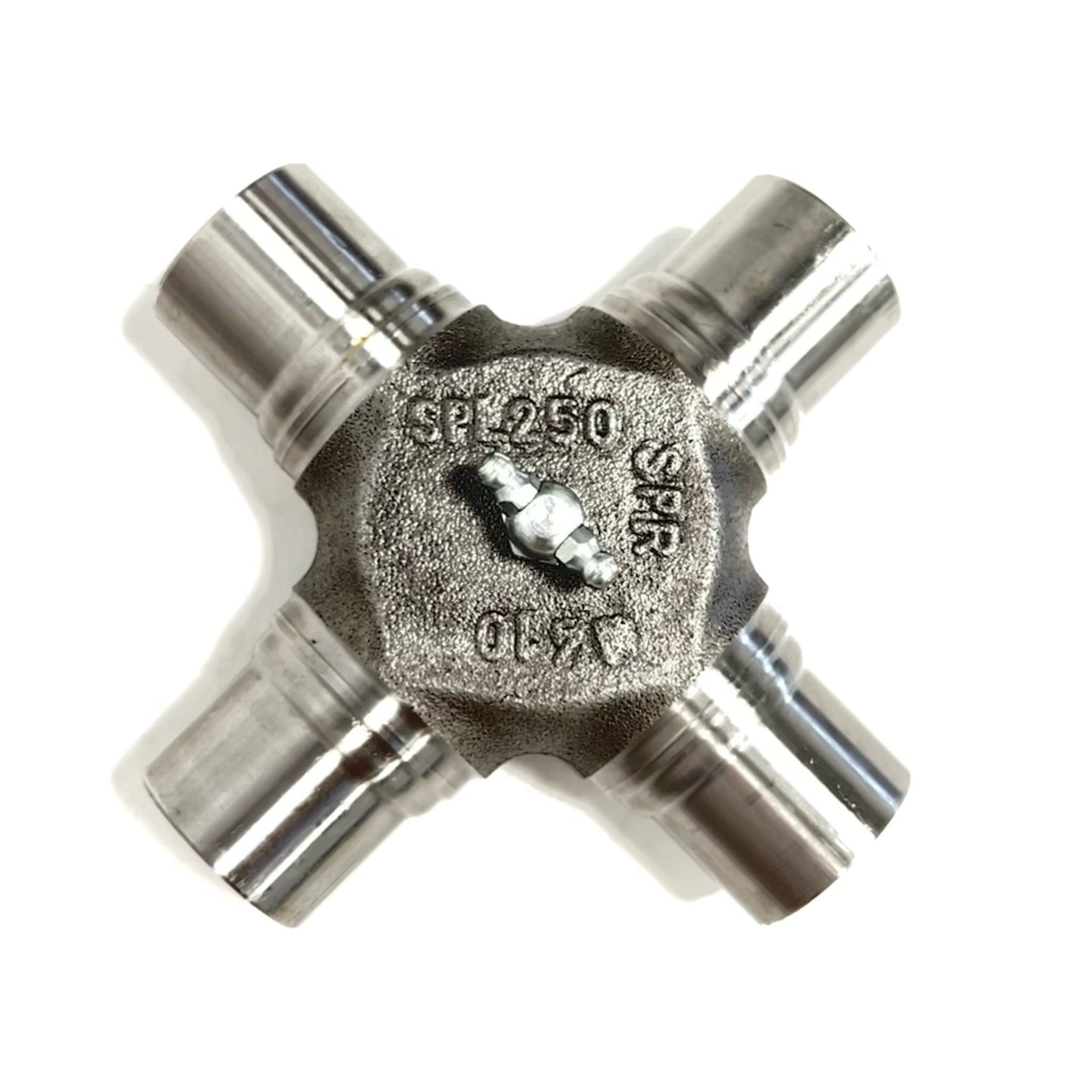

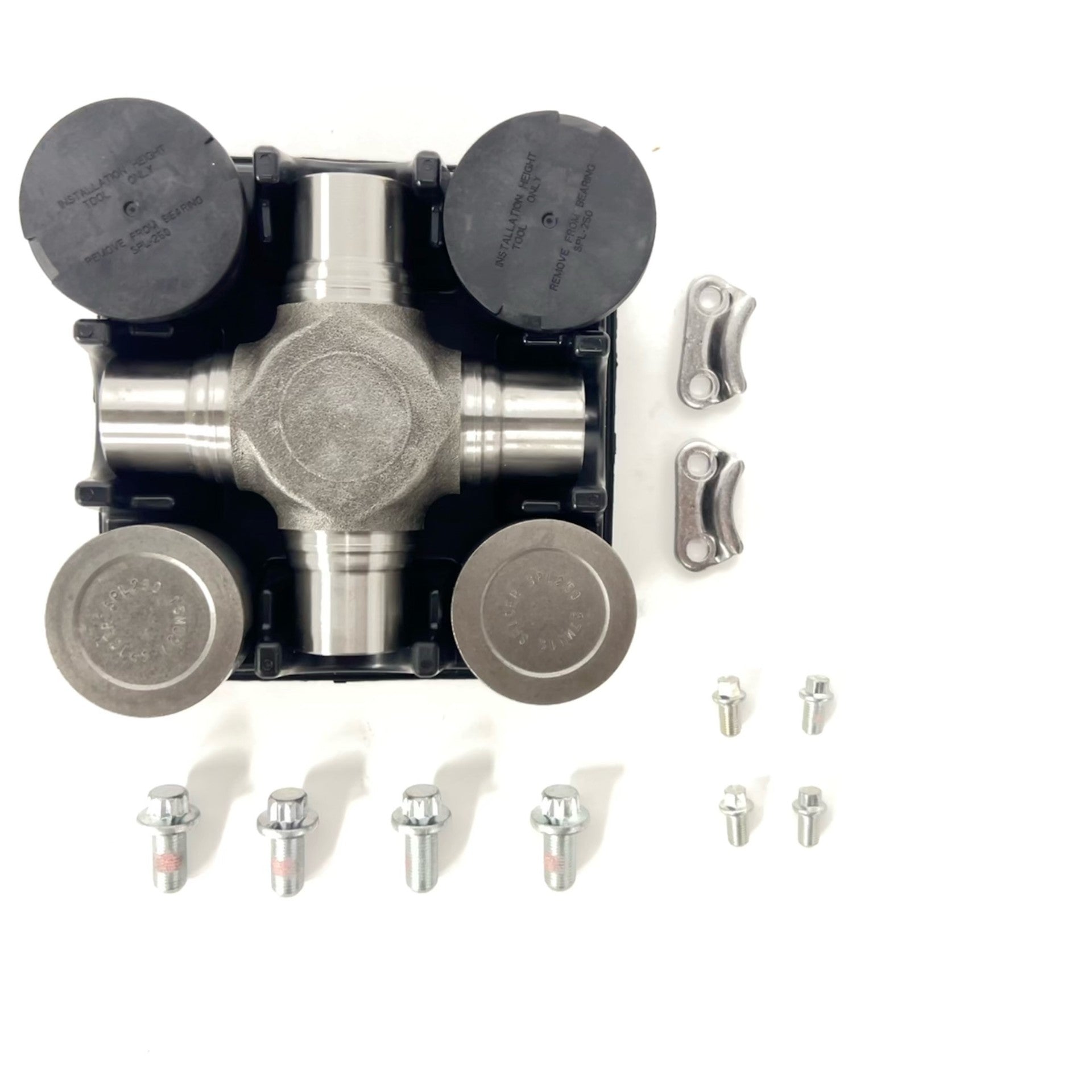

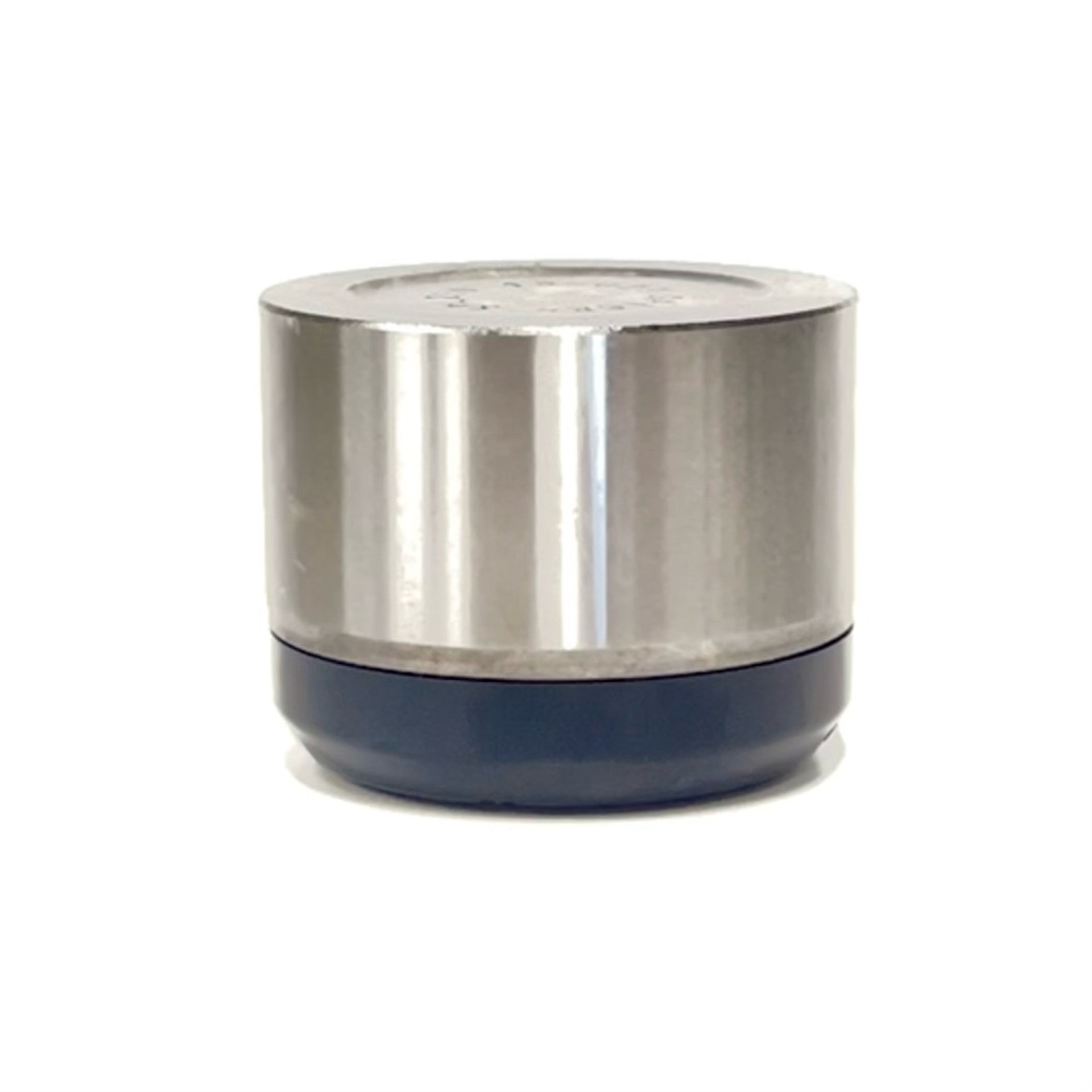

Dana Spicer SPL250-3X U Joint For SPL250 Series

Dana Spicer SPL250-3X U Joint For SPL250 Series

SKU: SPL250-3X

Inventory: 11 in stock

Shipping: Calculated at Checkout

$ 240.64 USD
$ 240.64 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

The Dana Spicer SPL250-3X U-joint is a heavy-duty universal joint designed for use on heavy-duty vehicles with heavy-drive applications, such as dump trucks, highway tractors, buses, and construction equipment. This universal joint is typically used on driveshafts with an SPL250 series.

Specification

  • Brand: Dana
  • Part Type: Universal Joints / U-Joints / U Joints
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: SPL250-3X
  • Type: Spring Tab Style (Sprtab)
  • OEM Mfg: Spicer
  • OEM Series: SPL250
  • Bearing Cap Diameter (1) : 2.362"
  • Bearing Plate (1): 6.417"
  • Weight: 11.44 LB
  • VMRS: 24002046
  • Country of Origin: United States

Cross-References

  • Automann: 752.SPL250X, 752SPL250X
  • Dana : SPL250-3X, SPL2503X. 25-SPL250-3X, 25SPL2503X,
  • Neapco: 61250
  • Paccar: PAC5XL250X

Dimensions

Dimension Not Available.
