F245570 | AIR SPRING 1R12-487, 9366

F245570 | AIR SPRING 1R12-487, 9366

SKU: F245570

Inventory: 26 in stock

Shipping: Calculated at Checkout

$ 172.79 USD
$ 172.79 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

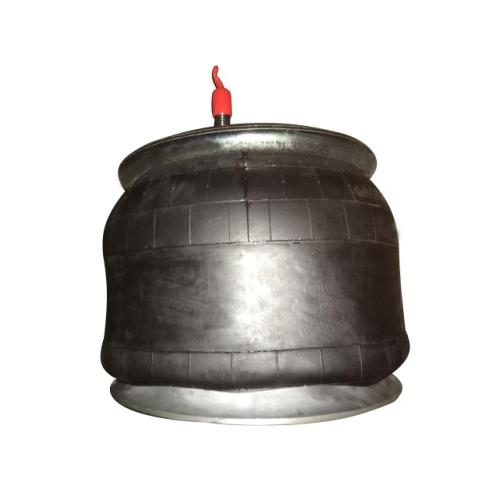

Fortpro Air Spring F245570 is a premium quality air suspension systems designed to provide exceptional performance in commercial and cargo vehicles. These air spring suspensions offer the perfect combination of comfort, stability and improved load capacity.

Specification

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 9366, W013589366, W01-358-9366
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Composite
  • Bead Plate Diameter Bottom: 9.75"
  • Bead Plate Diameter Top: 9.00"
  • Collapsed Height: 5.50"
  • Max. Height: 15.00"
  • Part Diameter: 10.12"
  • Piston Height: 3.75"
  • Stud Configuration-Bottom: 1
  • Stud Configuration - Top: 2
  • Weight:: 11.82 lbs
  • Application: Holland (Neway) 90557160, 90557210, 90557225, Watson & Chalin AS-0054, Wabash Holland (Neway) 90557225
  • VMRS: 016-008-000

Cross-References

  • Automann: 566CT64459, AB1DK23H9366
  • Contitech: 91012A488, 91012P488
  • Dayton Parts Batco: 1R12487, 3529366
  • Firestone: 9366, W013589366, W01-358-9366
  • Goodyear: 1R12487, 1R12487
  • Meritor: FS9366, MAF9366

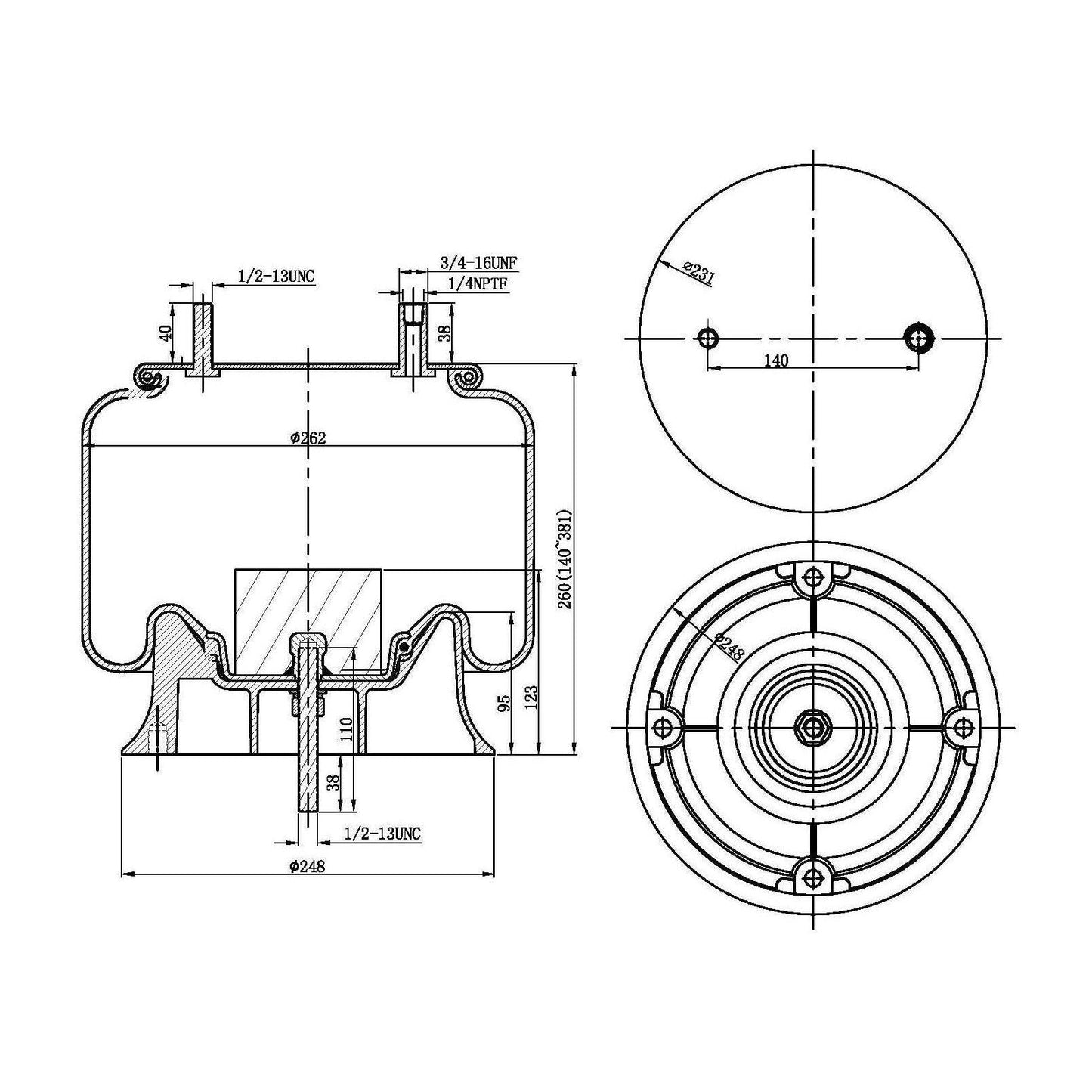

Dimensions

Dimension Not Available.
