• E6034 WHEEL STUD 13-1572
1 3

Fortpro

F286687 | E6034 WHEEL STUD 13-1572

F286687 | E6034 WHEEL STUD 13-1572

SKU: F286687

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 3.76 USD
$ 3.76 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

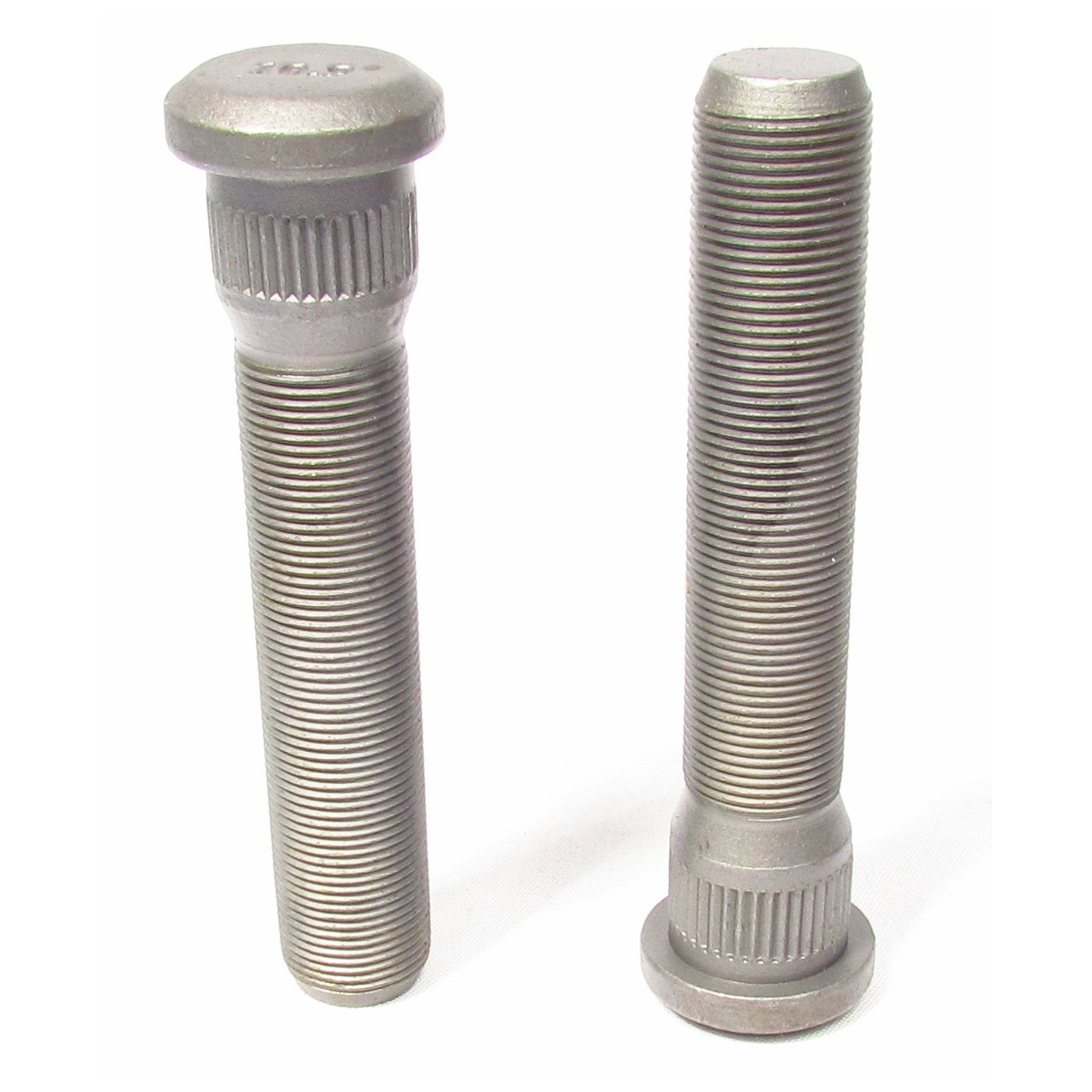

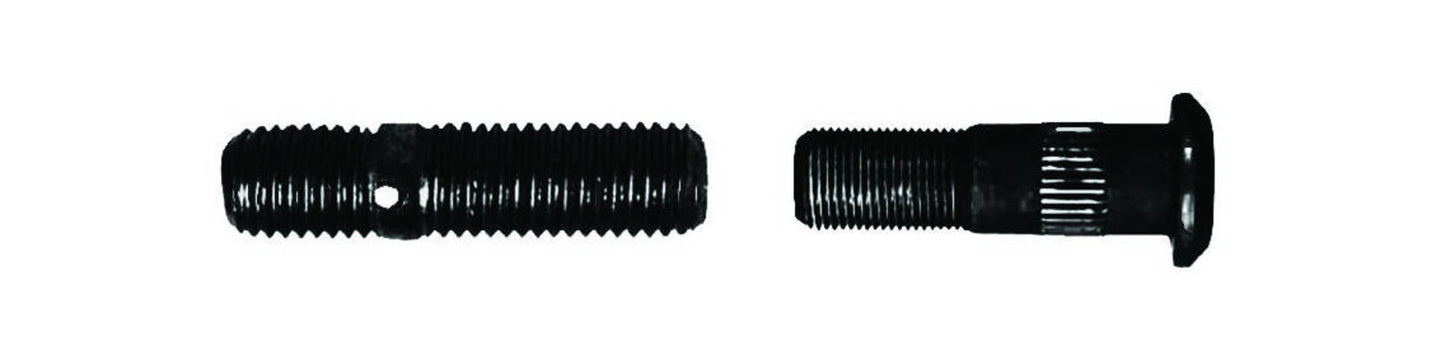

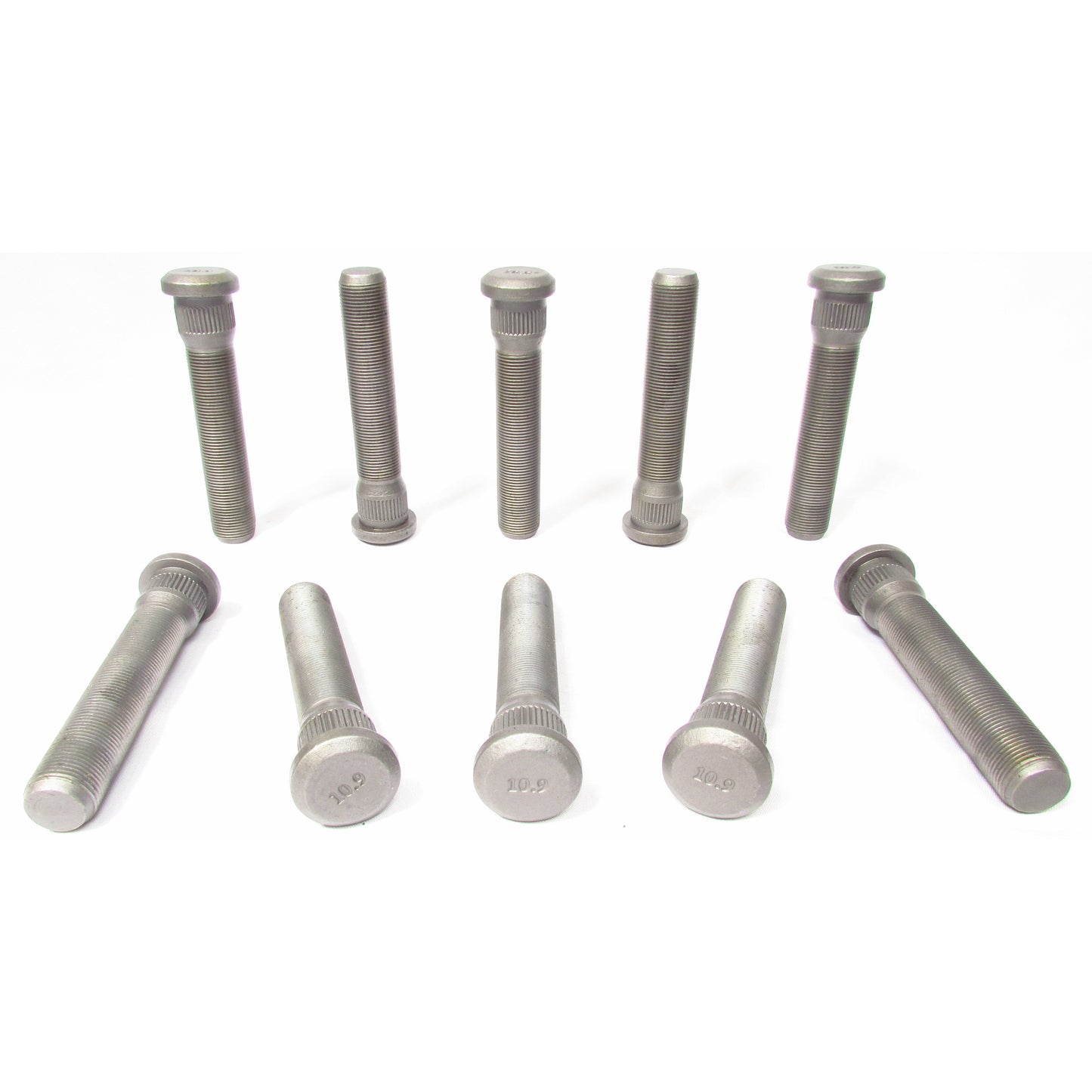

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286687 are serrated wheel studs designed to offer a secure hold on vehicles with M22 x 1.5 metric threads. With its heavy-duty design and tight fit, these studs provide stability and security for your wheels. Upgrade your ride with confidence with these superior quality splined studs

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E6034, E-6034
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: M22 X 1.5-6g
  • Body Length (E): 0.72"
  • Body Diameter (G): 0.975"
  • Length from Under Head (B): 4 25/32"
  • Head Diameter (F): 1.31"
  • Head Style: Round
  • Head Thickness: 0.36"
  • Thread (A): M22 x 1.5
  • Thread Diameter (H): 22.0 mm
  • Wheel End Thread Direction: RH (Right Hand)
  • Threads per Inch: 1.5 per mm
  • Thread Length (C): 3.47"
  • Serration: Serrated
  • Serration Length (D): 0.41"
  • Serration Diameter: 1.015"
  • Application:: Use R005991 nut
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016157, 2016157WE
  • BWP: M3217
  • Dayton Parts Batco: 131559, 131572, 131572P, 131572Q
  • Euclid: E6034, E-6034
  • Gunite: W1325
  • Meritor: R006034
  • Webb: 101160
  • World Truck: 15428003

Dimensions

Dimension Not Available.
