F245592 | AIR SPRING | Replace 8755 | FAS-0771

F245592 | AIR SPRING | Replace 8755 | FAS-0771

SKU: F245592

Inventory: Low stock: 9 left

Shipping: Calculated at Checkout

$ 180.86 USD
$ 180.86 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

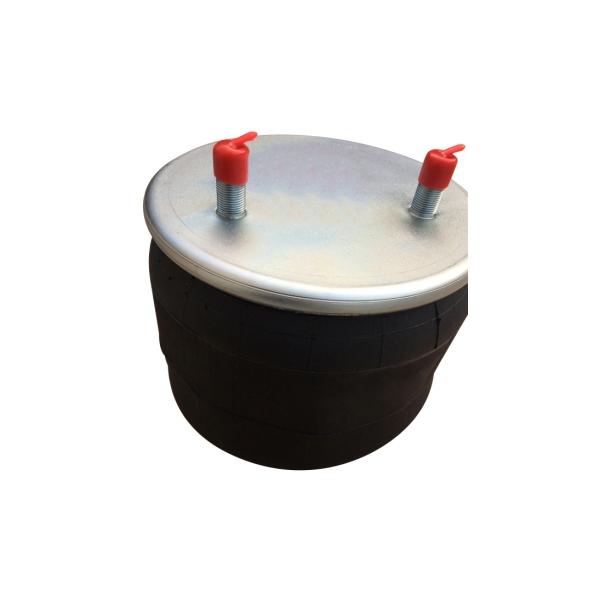

Fortpro Air Spring F245592 is a high quality air suspension component designed to provide excellent load carrying capacity and comfort in automotive applications. Constructed with strong, durable materials, this air spring offers reliable performance and long life. The F245592 features a cylindrical design and is built with a reinforced synthetic rubber membrane, which guarantees excellent resistance to tension and fatigue. This allows the air spring to support heavy loads efficiently without compromising its performance.

Specification

  • Brand: Fortpro
  • Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: 8755, W013588755, W01-358-8755
  • Position: Primary Truck & Trailer Axle
  • Air Spring Style: 1T Reversible Sleeve
  • Piston Type: Aluminum
  • Bead Plate Diameter Bottom: 8.42"
  • Bead Plate Diameter Top: 10.38"
  • Collapsed Height: 7.20"
  • Max. Height: 19.70"
  • Part Diameter: 10.12"
  • Piston Height: 5.60"
  • Stud Configuration-Bottom: 4
  • Stud Configuration - Top: 2
  • Weight:: 17.00 lbs
  • Application: Hendrickson Trailer S22045 (HK190T) Hendrickson Trailer Prototype C21623 (Tandem)
  • VMRS: 016-008-000

Cross-References

  • Automann: AB1DK25B8755
  • Contitech: 101015S522
  • Dayton Parts Batco: 3528755, S22045
  • Firestone: 8755, W013588755, W01-358-8755
  • Goodyear: 1R13124, 1R13-124
  • Meritor: FS8755

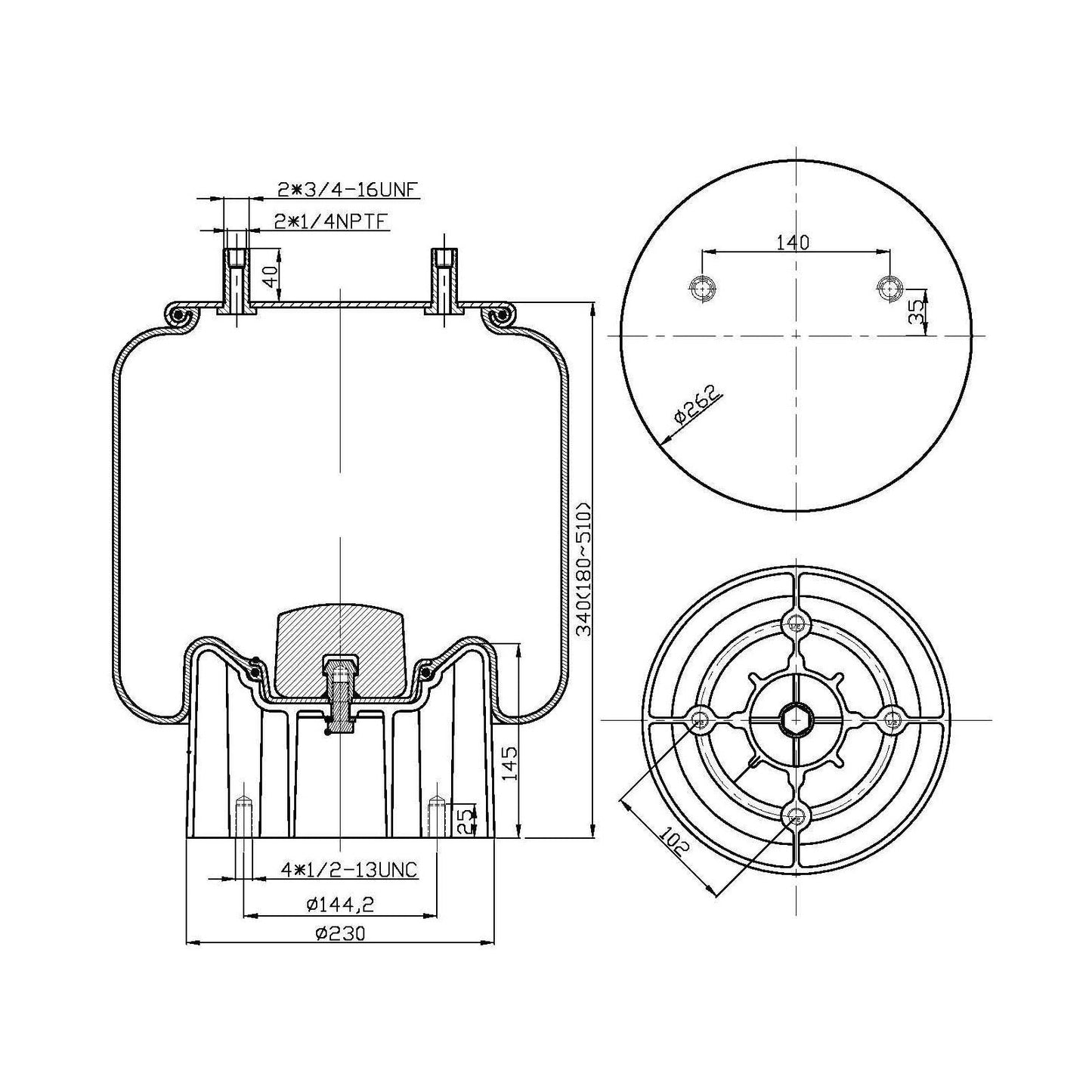

Dimensions

Dimension Not Available.
