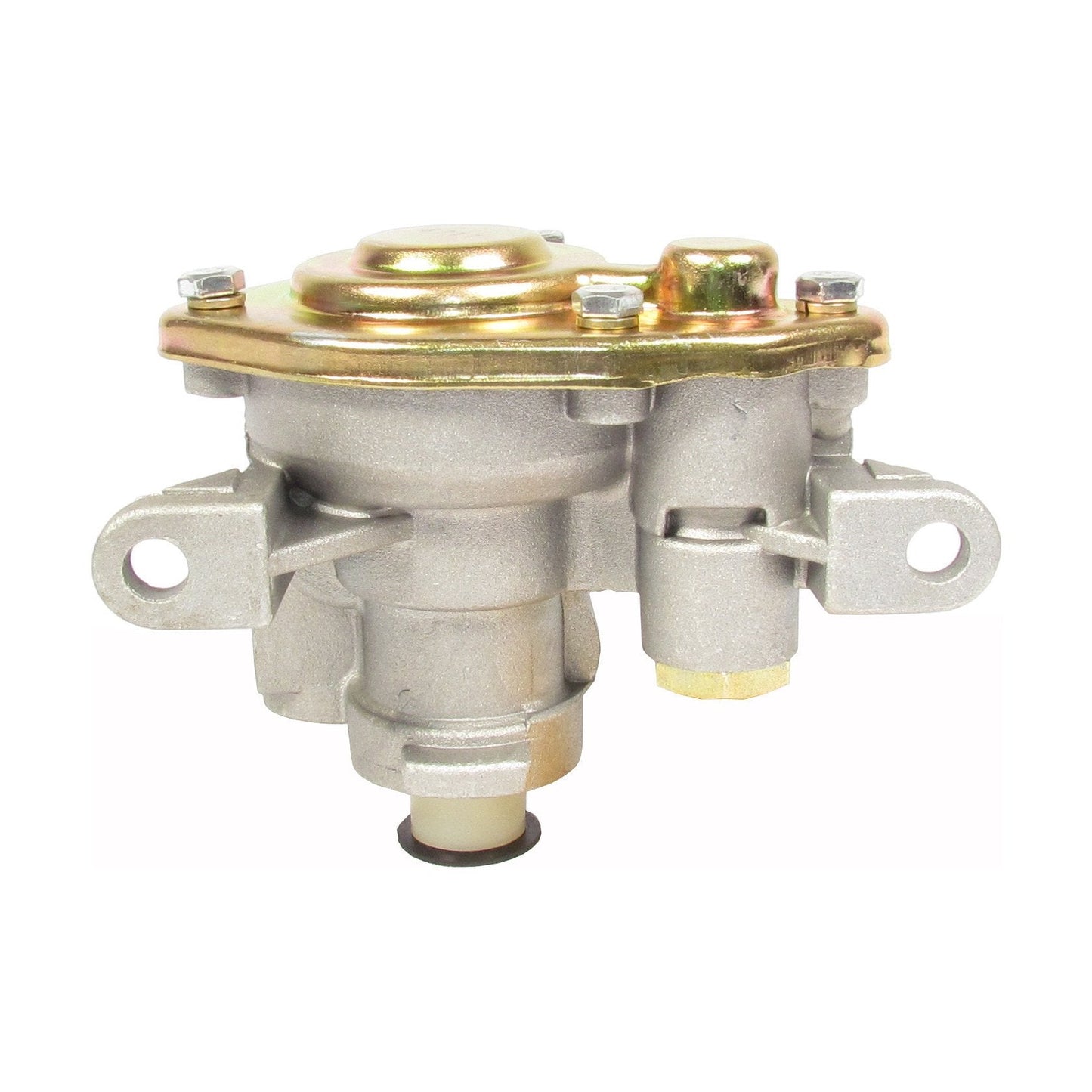

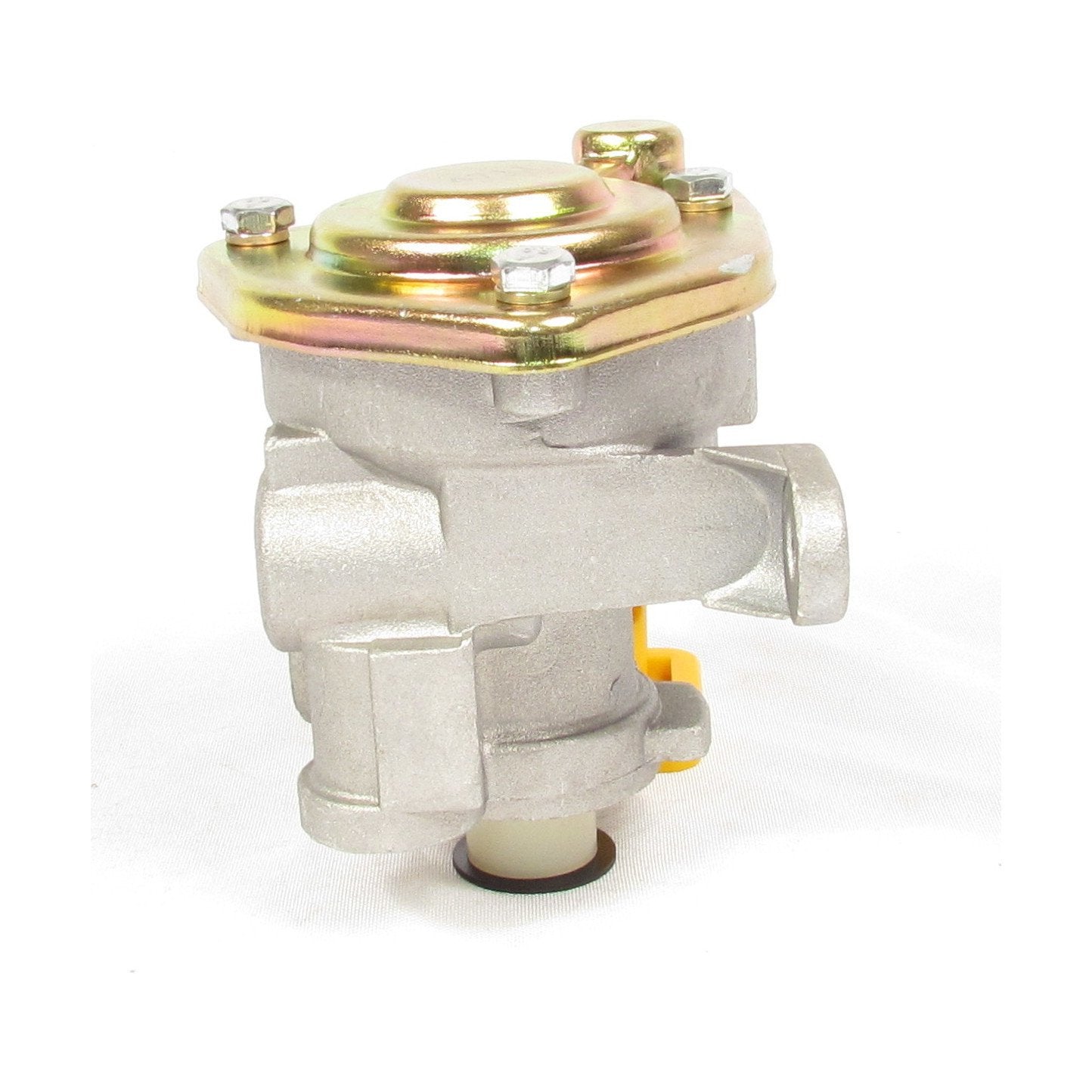

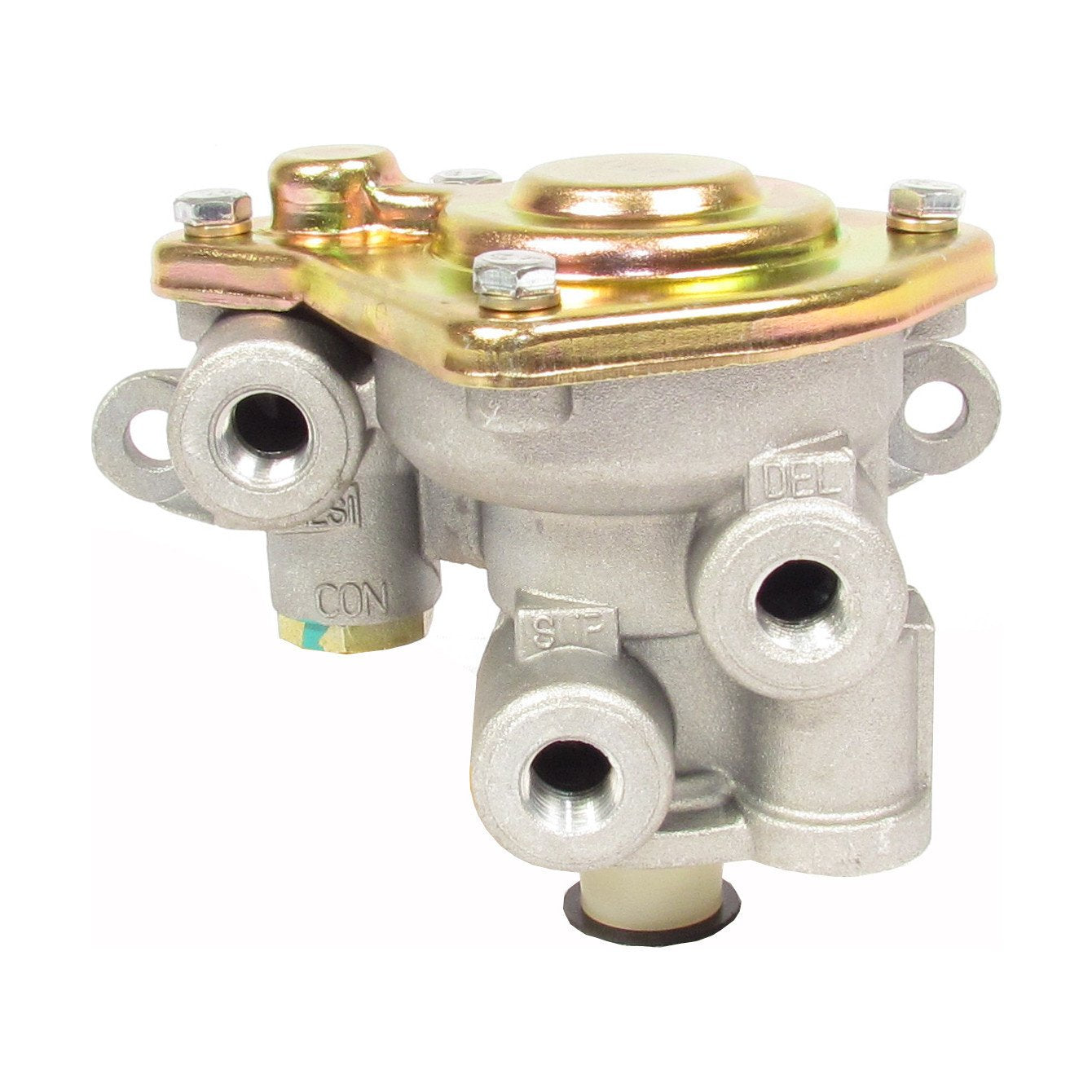

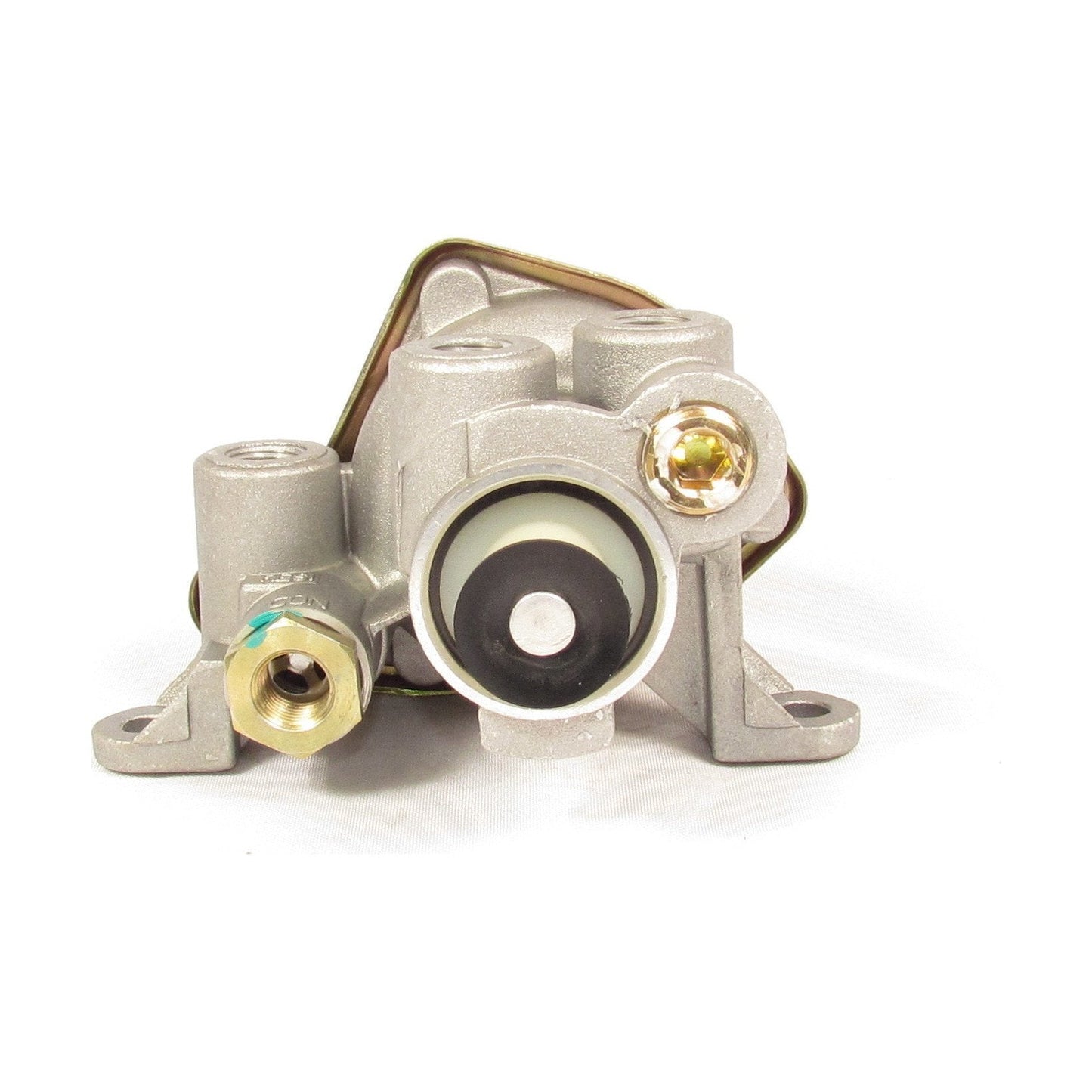

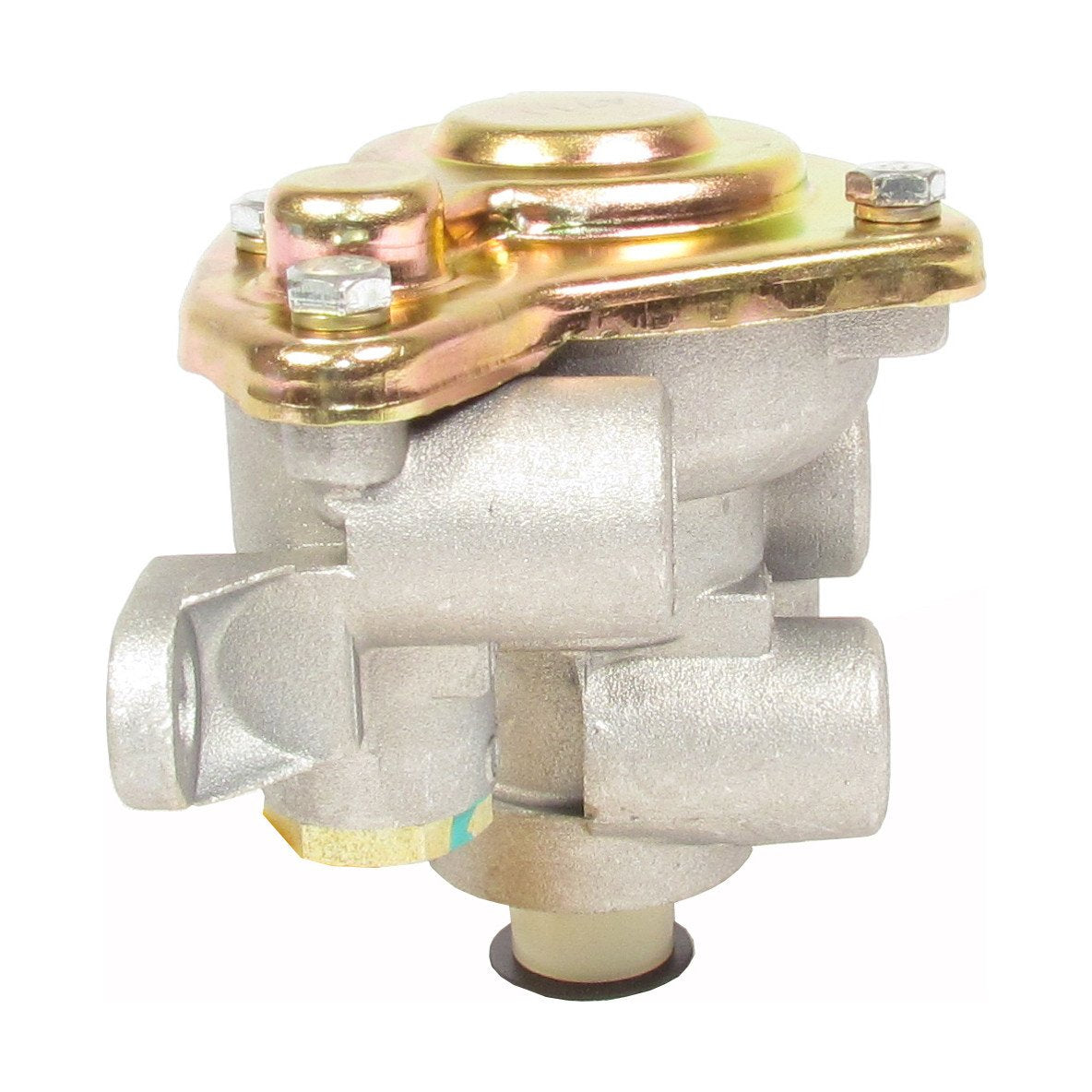

F224711 | SR-1 SPRING BRAKE VALVE | Replace 286364 | 20QE311OR | 1693173C91 | LIV-3653

F224711 | SR-1 SPRING BRAKE VALVE | Replace 286364 | 20QE311OR | 1693173C91 | LIV-3653

SKU: SKU:F224711

Inventory: Low stock: 7 left

Shipping: Calculated at Checkout

Regular price $ 51.60 USD
Regular price Sale price $ 51.60 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

Fortpro

Product Data Sheet

Description

Check Specification & Cross-references

Specification

  • Part OEM: Bendix 286364
  • Part: SR-1 Type Spring Brake Valve
  • Delivery Port: 1/4" P.T.
  • Supply Port: 1/4" P.T.
  • Control Port: 1/4" P.T.
  • Primary Reservoir Port: 1/4" P.T.
  • Hold-Off Pressure: 95 PSI
  • Material: Die Cast Zinc
  • Notes: The function of the SR-1 valve is to supply an intact, restricted hold-off pressure to the spring brakes, and in the event of loss of service air pressure, to regulate the spring brakes through the use of the service brake valve

Cross-References

  • Automann: 170286364
  • Bendix: 286364
  • Euclid: EBN286364N
  • Kenworth: K295127
  • Mack: 20QE311OR
  • Meritor: R955286364N
  • Navistar-International: 1693173C91
  • PAI: EM36530

Dimensions

Dimension Not Available.
